Double stage pulping machine for fruit juice
Usage: This machine can be used to pulp on the following fruits;
1 stone fruits after the stone has been removed, such as mango, peach, apricot, date;
2 Also used for the baccas (Chinese goose beery and strawberry);
3 kernel fruits after been cooked and softened(such as apple,pear,pumpkin)
Characteristics:
The double stage pulping machine adopts two stages pulping to enhance the quality of the fruit pulp, to make it even thinner and separate the dreg with fruit in further.
1 fruit pulp and the dreg separate automatically;
2 can be mounted in a processing line, and also can perform the production by own.
3 All the material where contact with the product is made of high quality stainless steel which are in standard of food requirements.
4 Easy to clean and disassemble and assemble.
Technical parameter
| Model | Description | External dimension(mm) | Suggested capacity | Suggested power |
| L*W*H | capacity and power varies as to different fruits |
| SDJ-2 | All made of sus304 stainless steel, rotating 960RPM-1350RPM | 1170*950*1250 | ≤2(T/H) | 7.5 |
| SDJ-5 | 1760*1350*1500 | 3~5(T/H) | 18.5 |
| SDJ-10 | 1950*1550*1880 | 6~10(T/H) | 30 |
| SDJ-15 | 2150*1550*1880 | 11~15(T/H) | 37 |
There are two pulping cavities in this equipment and they work in tandem.
When the product material enters through the screen mesh from first pulping stage feeding inlet, with the rotor’s high speed rotating, it is pressed in screen wall and has friction with it in S shape by the centrifugal force, then the fruit pulp will be discharged through the screen mesh and go to the second pulping stage inlet from the first pulping stage after accumulated in the shell, and enter into the second stage pulping through the second stage mesh screen and finally flow out through the outlet after the second pulping in the second stage.
The fruit residue will also move to the discharge outlet under the scraper force, and finally be discharged from it.
This double stage high speed pulping machine can be used to process the stone fruit after the stone has been removed (mango, peach, apricot, date), berries (kiwi, strawberry) and kernel fruit after being cooked and softened (apple, pear, pumpkin). It also can be used for squeezing the vegetable into vegetable juice after they are cut or sliced, also separating the vegetable bars, like: pepper, celery and other vegetables juice.
This double stage high speed pulping machine can be used to process the stone fruit after the stone has been removed (mango, peach, apricot, date), berries (kiwi, strawberry) and kernel fruit after being cooked and softened (apple, pear, pumpkin). It also can be used for squeezing the vegetable into vegetable juice after they are cut or sliced, also separating the vegetable bars, like: pepper, celery and other vegetables juice.
Product Tags:
|
|

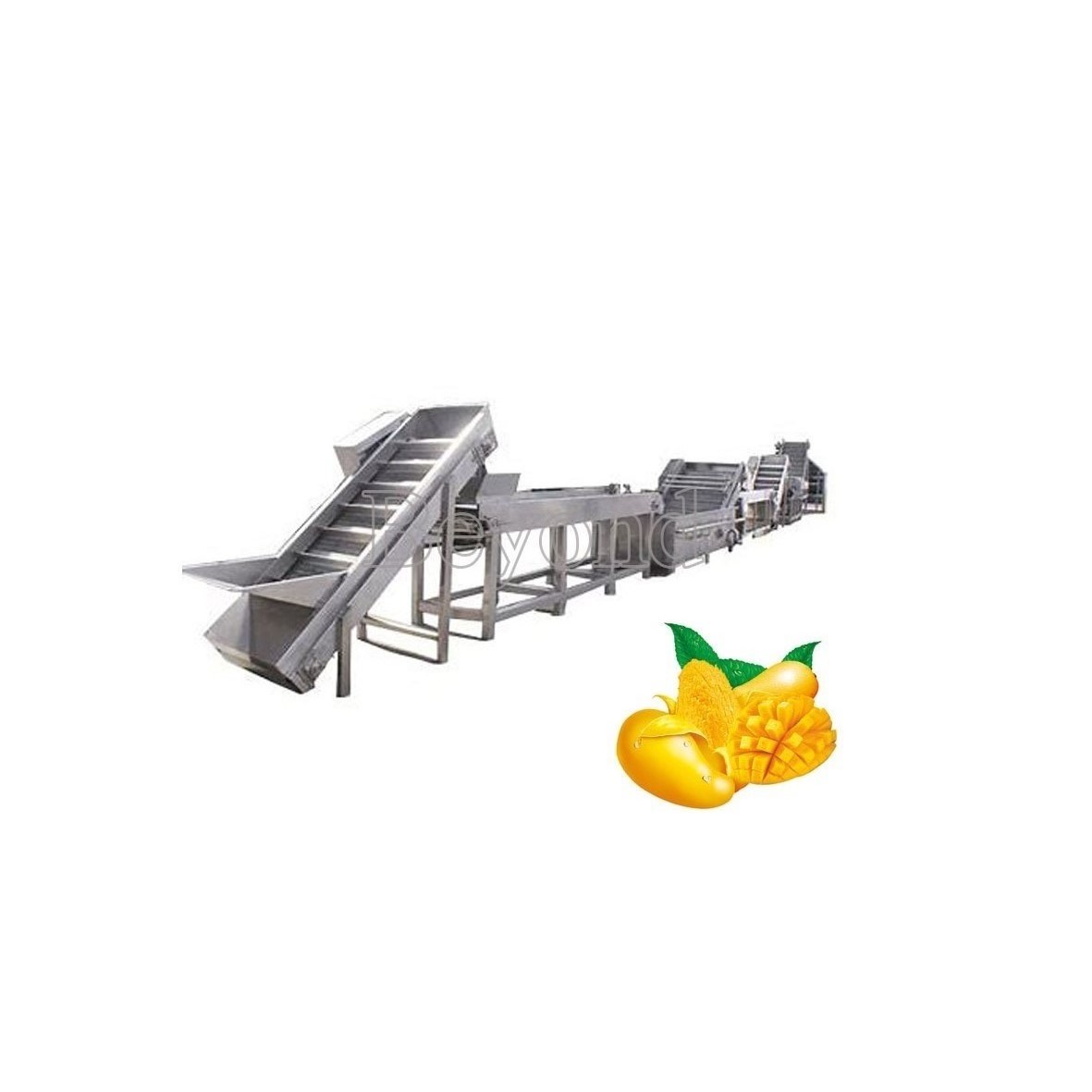

Fruit Juice Double Stage 10TPH Mango Processing Line Images
|
